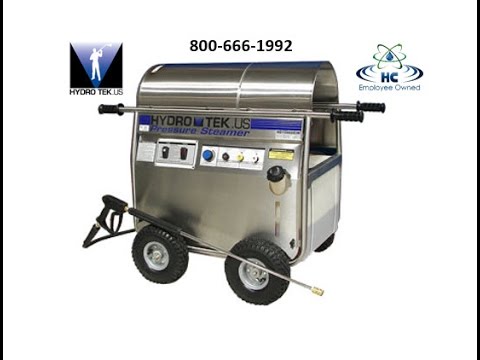

Hydro Tek HD Series Compact Portable Hot Water Electric Pressure Washer Steamer. Hydro Chem Systems 800-666-1992 sales@hcsclean.com www.hcsclean.com. Invest in the Best.
Features
SpiraLast™ Coil:
The coil is a Hydro Tek manufactured SpiraLast™ heating coil. Robotically fused ½” schedule 80 steel pipe is cold rolled to protect the steel pipe from fatigue and the spiral coil is then surrounded by ceramic insulation and stainless enclosure with double-wall end caps. Check out our lifetime coil warranty.
High Intensity Diesel Burners & Efficient Heating System:
The ultimate balance of power and efficiency. Provides economical operation with consistent superior performance. Auto ignition adds peace of mind & ease of operation.
HD Direct Drive units have open backside for easy service access.
8 Gallon Fuel Tank with Filtration:
Heavy Duty “roto-molded” rust free fuel tanks with fuel filter to protect against contaminated fuel. Extended run time reduces interruptions.
Stainless Steel Coil Housing, Frames and Panels:
Not just decorative flashes, these rugged and durable panels offer rustproof protection of your valuable investment from the harshest environments. Remove panel for full access to all major components. HD Direct Drive units have open backside for easy service access.
Adjustable Temperature:
Panel mounted adjustable temperature knob with steam setting increases cleaning effectiveness.
Operator has total control over the system from the trigger gun. This added convenience not only saves time and effort, it reduces wear of the pump, prevents the pump from running dry and produces an energy efficient system.
Fuel Tank with Filtration:
Heavy Duty “roto-molded” rust free fuel tanks with fuel filter to protect against contaminated fuel. Large fuel tanks extend run time and reduce interruptions.
HD Belt Drive Models
Inlet Chemical Injection:
The belt drive models are equipped with inlet soap injection combined with precision chemical metering valve and float tank to inject soap at full pressure for optimal cleaning effectiveness. Panel mounted controls enable the operator to vary the mixture of soap or other additives with ease.
Belt Driven Pump:
High torque, low RPM drive- cooler, quieter, continuous duty performance. EZ Align™ belt tensioning system allows for easy belt adjustment with a single adjustment bolt. Removing the pump for preventative maintenance is as simple as removing bolts, no need to reach underneath the washer.
Adjustable Temperature:
Panel mounted adjustable temperature knob with steam setting increases cleaning effectiveness.
More Standard Features:
Adjustable pressure unloader
Safety relief valve, burst disc technology and temperature limit switch
50’ hose, gun and wand included.Nozzles for various applications
Heavy duty industrial motor with standard thermal overload protection
NEW- low speed motor on both HD15002E1 models
NEMA4-Water tight control panel with lighted switches
Heavy duty, large tires and four handles for enhanced
mobility.
Specifications
Direct Drive Model PSI GPM Temp HP Voltage
HD15002E1 1500 2 250 2 115v 1ph 20a
HD15002E1-ITS 1500 2 250 2 115v 1ph 20a
HD22004E2H 2200 3.5 250 5 280/230 1PH 24a
HD27004E2H 2700 3.5 250 6.5 230v 1ph 27a
HD35015E1H - High Heat Low Flow 350 1.5 320 1.5 115v 1ph 15a
Belt Drive Model PSI GPM Temp HP Voltage
HD10003E1G 1000 2.8 250 2 115v 1ph 20a
HD20004E2G 2000 3.5 250 5 208/230v - 1ph 24amp
HD25004E2G 2500 3.6 250 6.5 230v - 1ph 27amp
HD30003E2G 3000 3.2 250 6.5 230v - 1ph 27amp
HD30004E2G 3000 3.9 250 8 208/230v - 1ph 36amp
Specifications may vary, consult factory for custom models
Dan Swede, Sales manager.
Contact HCS today and get an estimate: 800-666-1992
Visit our website at http://www.hcsclean.com
Email: dans@hcsclean.com
Youtube Channel http://www.youtube.com/user/DPSWEDE
